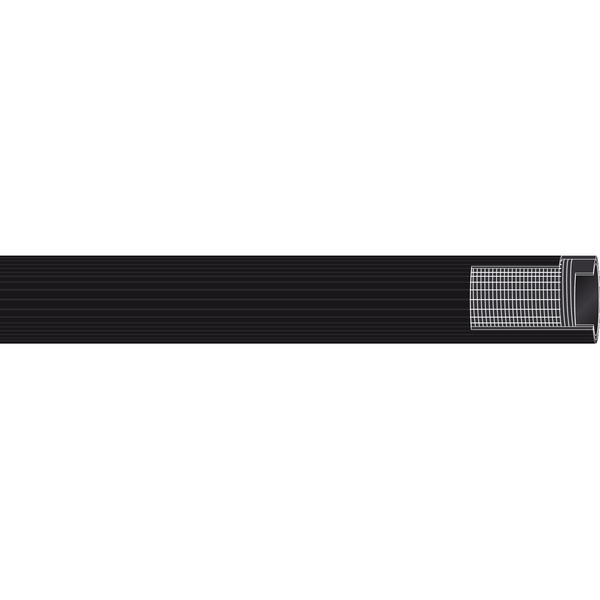

AIRFLAT

SPECIFICATIONS

• Easy to handle and store, very low weight, can be rolled flat.
• High tensile resistance and excellent adhesion between rubber and textile.
• Available in length up to 200m.
• Oil and chemical resistant.
• Good flexibility under pressure.
• The hose withstands very rough handling but if it should be damaged just pull a hose sleeve of the same diameter over the damaged part of the hose (the expansion due to
  the pressure will seal the leak).

TECHNICAL DESCRIPTION

• Inner tube: oil resistant NBR, black, smooth.
• Reinforcement: synthetic textile, woven.
• Cover: ozone and oil resistant NBR, black, longitudinal fluted.
• Temperature range: -20°C to +80°C.
• Electrical properties: non conductive.
• Working pressure: 20 bar.

APPLICATIONS

• Light lay flat hose for public works, agriculture and all kinds of industries for multipurpose applications.
• Designed for pumping and transport of water and similar liquids as well as compressed air, especially when long length and light
  weight are required and when sites are not easily accessible.
